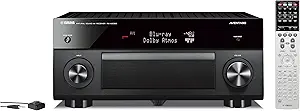

Yamaha RX-A2060
About
Pros & Cons
Pros
- The application for this receiver is well-designed – it works fast and it is easy to use.
- The output sound and video are amazing – nothing lags or stutters. The sound is clear and it is not distorted.
- The performance is very high – you can quickly access various menus or switch HDMI sources.
Cons
- Some customers have issues with the Bluetooth module.
Specification
Connector Type
HDMI Outputs
2
HDMI Inputs
8
Coaxial Digital Inputs
3
Optical Digital Inputs
3
Phones
1
AV Inputs
3
USB
1
Subwoofer Outputs
2
Coaxial Digital Outputs
has not
Optical Digital Outputs
has not
Media Content Source
USB-host
Network
Bluetooth
Additional Features
Audio Return Channel (ARC)
Apple Air-play Support
Advanced Sound Retriever (ASR) Technology
Three-zone Capability
Smartphone Remote Control
A-B Speaker Switch
Dual-zone Capability
Pure Direct Mode
Auto Power Off
Bi-amplifying
Amplifier
Total Harmonic Distortion
0.06 %
Frequency Response
20 Hz-20 kHz
Output Impedance Per Channel
8 Ohm
Output Power Per Channel
140 W, 155 W, 220 W
Total Output Power
1260 W
Signal-to-Noise Ratio
124 dB
Number Of Channels
9
Sound Features
Surround System Class
9.2 channel
Surround Sound Effects
CINEMA DSP 3D. SILENT CINEMA DSP. Virtual CINEMA DSP. Virtual CINEMA FRONT. Virtual Presence Speaker. Virtual Surround Back Speaker
Audio D/A Converter
24bit / 192kHz
Digital Content Protection
HDCP 2.2
Audio Formats
Apple Lossless
AIFF
AAC
WMA
WAV
MP3
FLAC
Dimensions
Weight
37.5 pounds
Dimensions
18.6 x 17.1 x 7.5 inches
Built-in Decoders
Dolby Surround
Dolby Digital Plus
Dolby Atmos
DTS:X
Dolby True HD
Signal Processing
HDMI Pass-through
up to 4K
Upscaling Via HDMI
up to 4K
3D Pass-through
Video Conversion/scaling
HDMI to HDMI scaling, analog to HDMI up conversion
Connectivity Interfaces
IEEE 802.3u
IEEE 802.3
WI-FI
Bluetooth
User Manual
Manual
rx-a2060bl.pdf
Functions
Network Audio Player
Internet Radio
Digital Player
Power Device
Standby Power Consumption
0.1 W
Operational Power Consumption
400 W
Radio
Preset Station
40
Tuner Bands
AM/FM
Tuner Type
digital
Clock
Sleep Timer
Built-in Clock
Built-in Display
Colour
black
Type
fluorescent
General
Brand
Yamaha
